47~1000MHz Mini Optical Transmitter DFB Laser 2 Output Port RF Input 1 Optical Input

Name: 471000MHz Mini Optical Transmitter DFB Laser 2 Output Port RF Input 1 Optical Input
Brand: JiZhong
Price: 1 USD

Wholesale 47~1000MHz Mini Optical Transmitter DFB Laser 2 Output Port RF Input 1 Optical Input from china suppliers

Brand Name : JiZhong

Model Number : JZOTH13XX

Place of Origin : China

MOQ : 1pcs

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 work days

Packaging Details : Standard export packing

Wavelength : 1310nm/1550nm

Frquency range : 47~1000MHz

In band Flatness : ±0.75dB

Input reflection loss : ≥16dB

AGC control range : ±5dB

MGC control range : 0~10dB

Power consumption : ≤8W

Size : 140x90x26mm

Contact Now

47~1000MHz DFB Laser 2 Optical Output Port RF Input 1 Optical Input MINI Optical Transmitter

Features:

Compact Aluminum Housing;
5~1000MHz optimized circuit design;
High performance DFB coaxial laser;
1550nm or 1310nm DFB laser working at burst mode for return RF;
LED display forward and return optical working status;
12V DC power adaptor;

Single way or double way output, low consumption design;

With power adapter;

Technical parameters:

Item	Unit	Technical spec.
Optical output wavelength	nm	1310/1550±20
Frequency range	MHz	47-1000
Laser type		DFB laser
In-band flatness	dB	±0.75
RF input level	dBµV	72 ~ 82
Optical connector type		FC/APC or SC/APC
Input reflection loss	dB	≥16
C/N	dB	≥ 51
C/CSO	dB	≥ 60
C/CTB	dB	≥ 65
AGC controlling range	dB	±5
MGC controlling range	dB	0~10
Optical return loss	dB	45
Power voltage	V	DC12V/1A
Power consumption	W	≤ 8
Dimension(LWH)	mm	1409026

47~1000MHz Mini Optical Transmitter DFB Laser 2 Output Port RF Input 1 Optical Input

Product Tags:

power optical transmitter

catv fiber optic transmitter

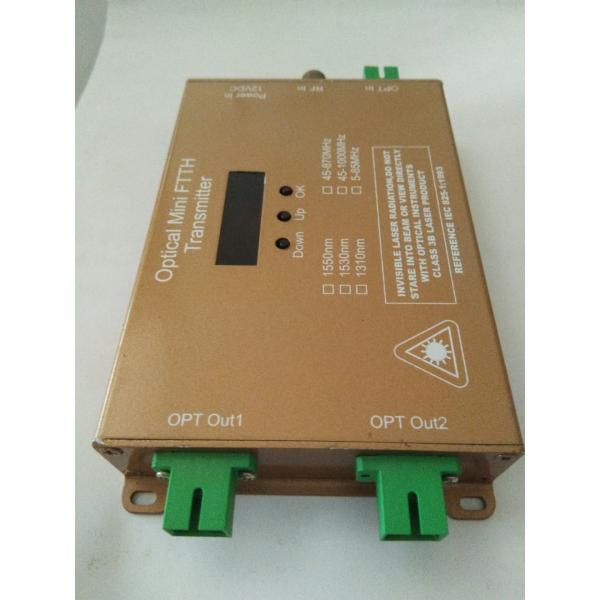

47~1000MHz Mini Optical Transmitter DFB Laser 2 Output Port RF Input 1 Optical Input Images
